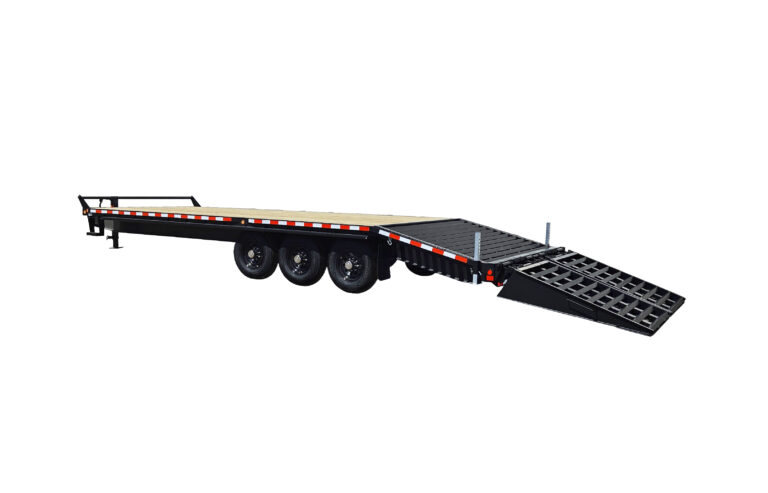

Premium Pintle Series PHFT.21KTR
Brand: Canada Trailers
Component
Details
GVWR
22,680 lbs
Axles
(3) 7,000 lbs Axles w/Easy Lube Spindles
Suspension
Slipper Spring Suspension
Tires
ST235/80R16 LRE Radial
Brakes
Electric on All Axles
Coupler
Adjustable 3" Lunette Eye
Jack
12,000 lbs Drop Leg Jack
Deck Height
36"
Frame
12" @ 22 lbs Heavy Wide-Flange Beams
Crossmembers
Every 16"
Beavertail
5' Angle Iron Beavertail
Ramps
5' Spring-Assisted Wedge Ramps
Floor
Pressure Treated Wood
Tongue Length
62"
Tie Downs
Stake Pockets & Rub Rails
Side Steps
On Both Sides
Spare Tire Mount
Optional - Tongue Mount Only
Lights
Sealed Beam, L.E.D.
Electrical
Sealed Harness System
Plug
7-Way RV Plug
Finish
Powder Coat + Scorpion Stone Guard
Number
Details

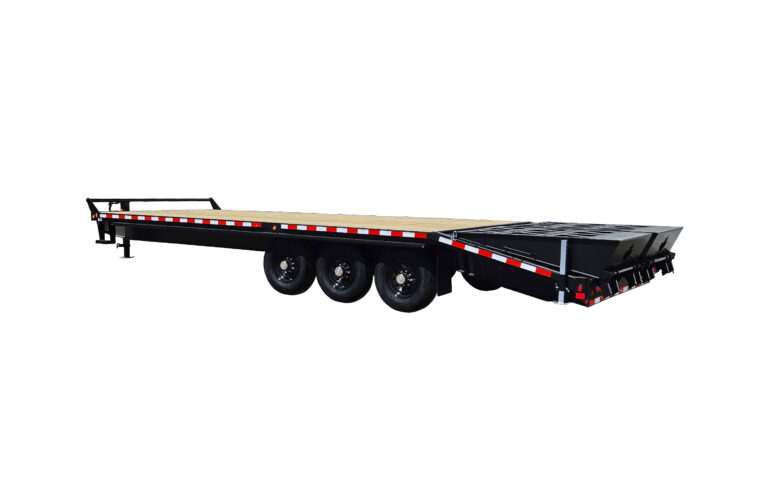

PHFT25-21KTR
Size: 102" X 300"; Weight: 6,078 lbs; Payload: 16,602 lbs
PHFT28-21KTR
Size: 102" X 336"; Weight: 6,481 lbs; Payload: 16,199 lbs
PHFT30-21KTR
Size: 102" X 360"; Weight: 6,800 lbs; Payload: 15,880 lbs
PHFT32-21KTR
Size: 102" X 384"; Weight: 7,038 lbs; Payload: 15,642 lbs
