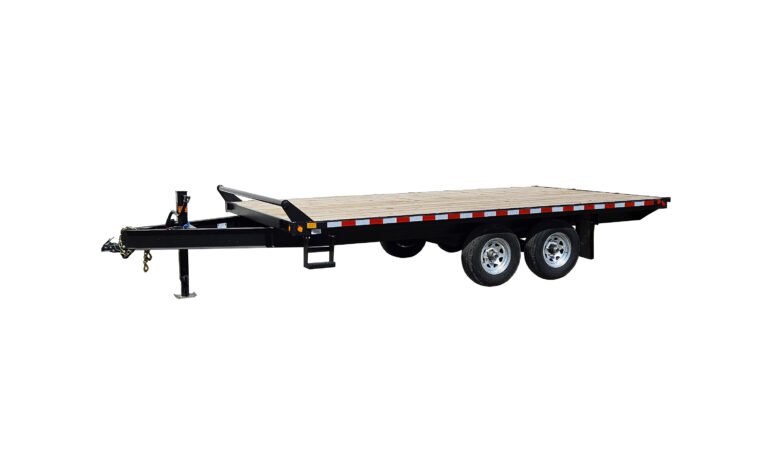

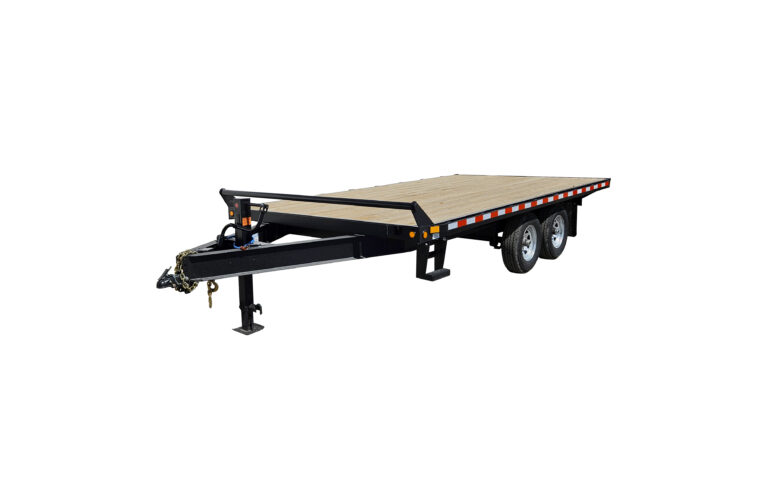

Straight Deck Pintle Series SD.10K
Brand: Canada Trailers
Component
Details
GVWR
10,800 lbs
Axles
(2) 6,000 lbs Axles w/Easy Lube Spindles
Suspension
Slipper Spring Suspension
Tires
ST225/75R15 LRE Radial
Brakes
Electric on All Axles
Coupler
Adjustable 2-5/16" Coupler or 3" Lunette Eye
Jack
12,000 lbs Drop Leg Jack
Deck Height
32"
Frame
Light Weight, Rigid Frame
Crossmembers
Every 16"
Ramps
7' Ramps, Stowed Under Deck
Floor
Pressure Treated Wood
Tongue Length
62"
Tie Downs
Stake Pockets & Rub Rails
Side Steps
On Both Sides
Spare Tire Mount
Optional - Tongue Mount Only
Lights
Sealed Beam, L.E.D.
Electrical
Sealed Harness System
Plug
7-Way RV Plug
Finish
Powder Coat + Scorpion Stone Guard
Number
Details
SD16-10K
Size: 102" X 192"; Weight: 3,098 Lbs; Payload: 7,702 Lbs
SD18-10K
Size: 102" X 216"; Weight: 3,269 Lbs; Payload: 7,531 Lbs
SD20-10K
Size: 102" X 240"; Weight: 3,473 Lbs; Payload: 7,327 Lbs
