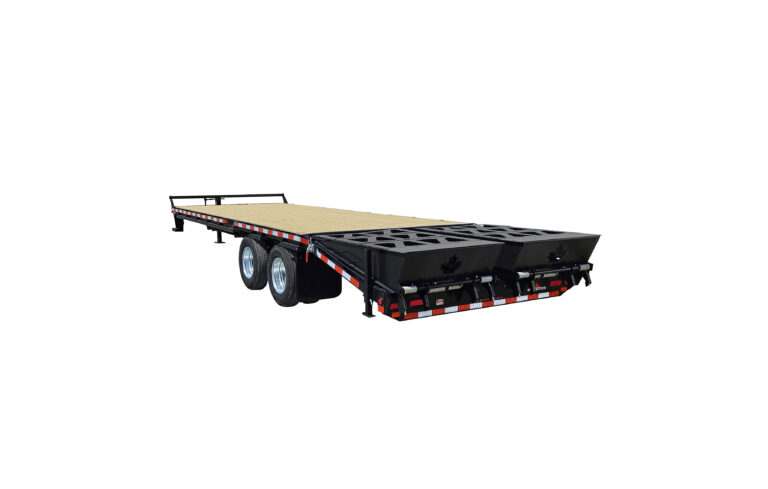

Premium Pintle Series PHFT.24KD
Brand: Canada Trailers
Component
Details
GVWR
25,920 lbs
Axles
(2) 12,000 lbs Axles Dually w/ Oil Bath Hubs
Suspension
Slipper Spring Suspension
Tires
ST235/80R16 LRE Radial
Brakes
Electric on All Axles
Coupler
Adjustable 3" Lunette Eye
Jack
12,000 lbs Drop Leg Jack
Deck Height
36"
Frame
12" @ 22 lbs Heavy Wide-Flange Beams
Crossmembers
Every 16"
Beavertail
5' Angle Iron Beavertail
Ramps
5' Spring-Assisted Wedge Ramps
Floor
Pressure Treated Wood
Tongue Length
62"
Tie Downs
Stake Pockets & Rub Rails
Side Steps
On Both Sides
Winch Track
Driver's Side
Spare Tire Mount
Optional - Tongue Mount Only
Lights
Sealed Beam, L.E.D.
Electrical
Sealed Harness System
Plug
7-Way RV Plug
Finish
Powder Coat + Scorpion Stone Guard
Number
Details
PHFT25-24KD
Size: 102" X 300"; Weight: 6,657 lbs; Payload: 19,263 lbs
PHFT28-24KD
Size: 102" X 336"; Weight: 7,057 lbs; Payload: 18,863 lbs
PHFT30-24KD
Size: 102" X 360"; Weight: 7,381 lbs; Payload: 18,539 lbs
PHFT32-24KD
Size: 102" X 384"; Weight: 7,618 lbs; Payload: 18,302 lbs
