Responsive two-lever hydraulic control with exceptional feathering characteristics.
Fits the KIOTI CS10 Series Sub Compact Tractor.
Today’s hours /
8:00AM – 4:30PM
What are you looking for?

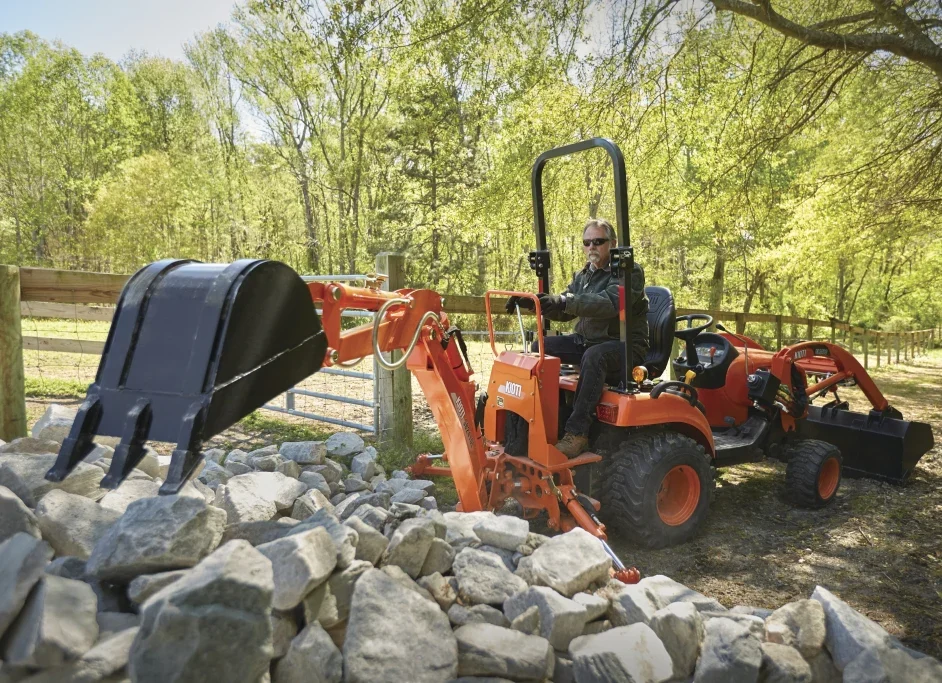

SB2410SL Backhoe
Brand: Kioti
Backhoes
KIOTI backhoes deliver trenching up to 94” deep with a bucket dig force of up to 3,748 pounds. The backhoes feature sub-frame mounting, self-contained hydraulics, two-lever hydraulic controls, hydraulic stabilizers, transport lock and a variety of buckets. Now go dig.
Component
Details
Compatibility
Fits the KIOTI CS10 Series Sub Compact Tractor.
Digging Depth
72.80 in (1,850 mm)
Reach
105.70 in (2,684 mm)
Loading Height
59.10 in (1,500 mm)
Maximum Leveling Angle
8 °
Swing Arc
150 °
Transport Height
68.10 in (1,729 mm)
Transport Overhang
41.30 in (1,050 mm)
Bucket Rotation
165 °
Stabilizer Spread Down
78 in (1,981 mm)
Stabilizer Spread Up
54 in (1,372 mm)
Departure Angle
14 °
Weight
635 lb (288 kg)
Digging Force Bucket
2,105 lb (955 kg)
Digging Force Dipperstick
1,183 lb (537 kg)
Operating Pressure
1,885 psi (130 bar)
