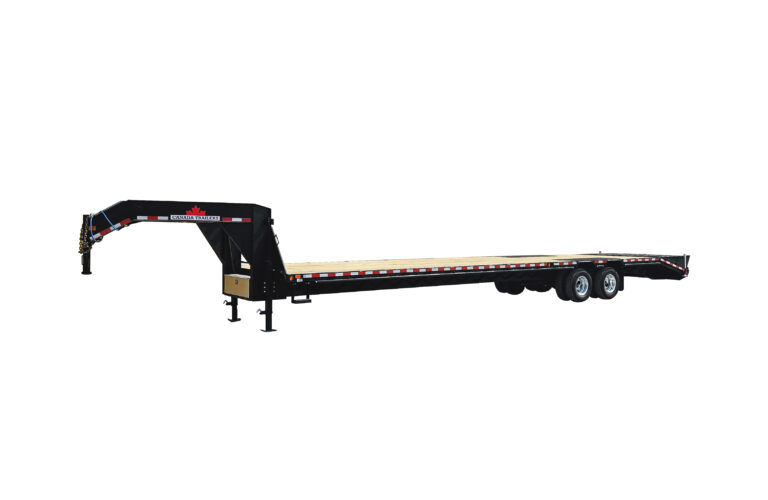

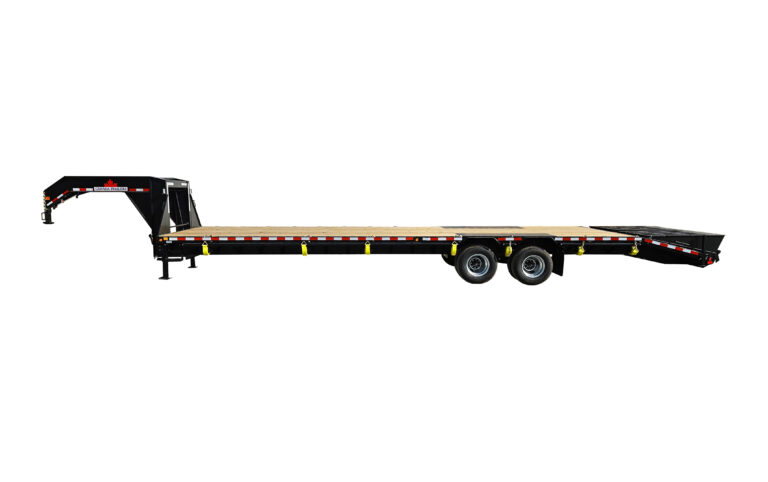

Gooseneck XD Series GNXD.24KD
Brand: Canada Trailers
Component
Details
GVWR
25,920 lbs
Axles
(2) 12,000 lbs Axles Dually w/ Oil Bath Hubs
Suspension
Slipper Spring Suspension
Tires
ST235/80R16 LRE Radial
Brakes
Electric on All Axles
Coupler
Adjustable Gooseneck Coupler
Jack
(2) 12,000 lbs Drop Leg Jack
Deck Height
36"
Frame
12" @ 22 lbs. Wide Flange I-Beam Frame; Torque Tube; Crossmembers every 16"; HD 1/4" Plate over Axles

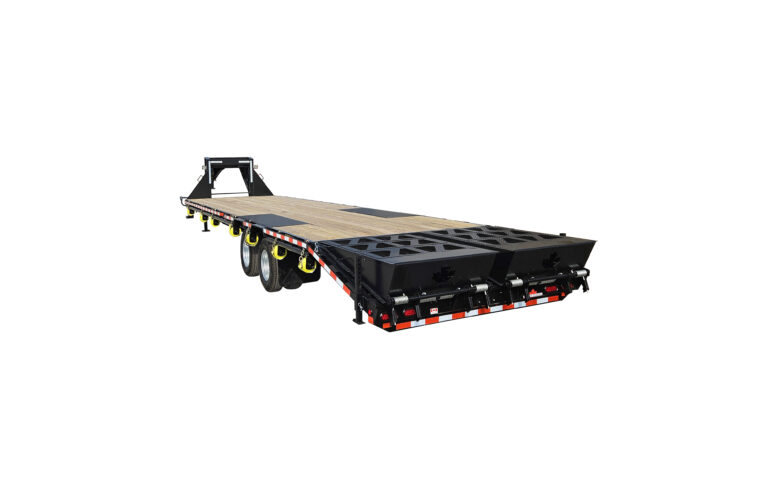

Beavertail
5' Angle Iron Beavertail

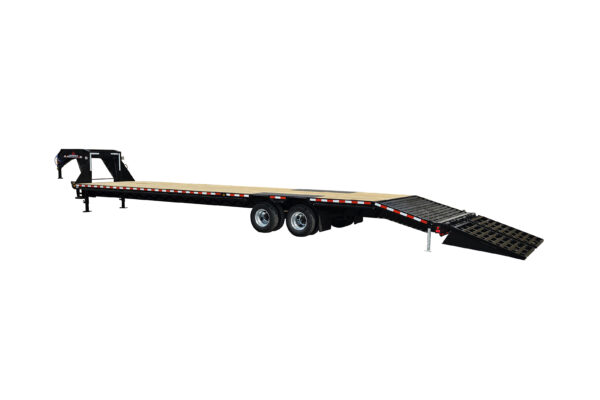

Ramps
5' Full Width Ramps
Gooseneck Length
9'
Tie Downs
Stake Pockets & Rub Rails
Side Steps
On Both Sides

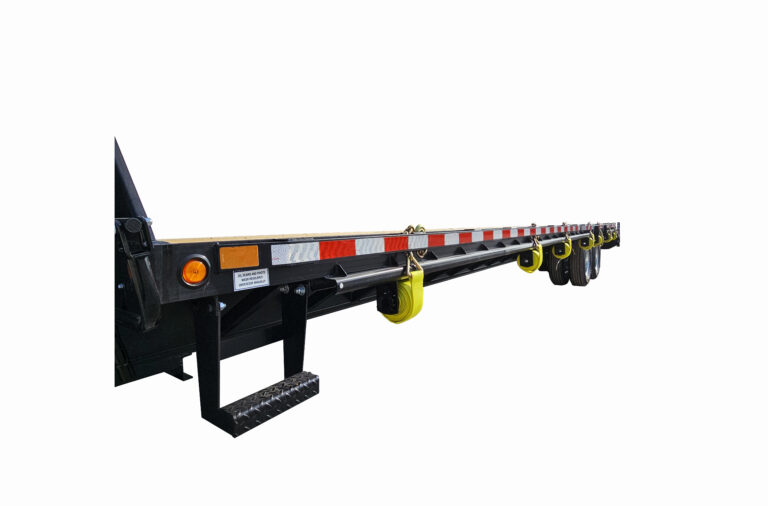

Winch Track:
Drivers Side
Spare Tire Mount
On Gooseneck
Loading Lights
Rear Facing w/ Remote On/Off
Lights
Sealed Beam, L.E.D.
Electrical
Sealed Harness System
Plug
7-Way RV Plug
Finish
Powder Coat + Scorpion Stone Guard
Number
Details
GNXD32
Size: 102" x 384"; Weight: 8,978 lbs; Payload: 16,942 lbs
GNXD35
Size: 102" x 420"; Weight: 9,476 lbs; Payload: 16,444 lbs
GNXD40
Size: 102" x 480"; Weight: 10,450 lbs; Payload: 15,470 lbs
