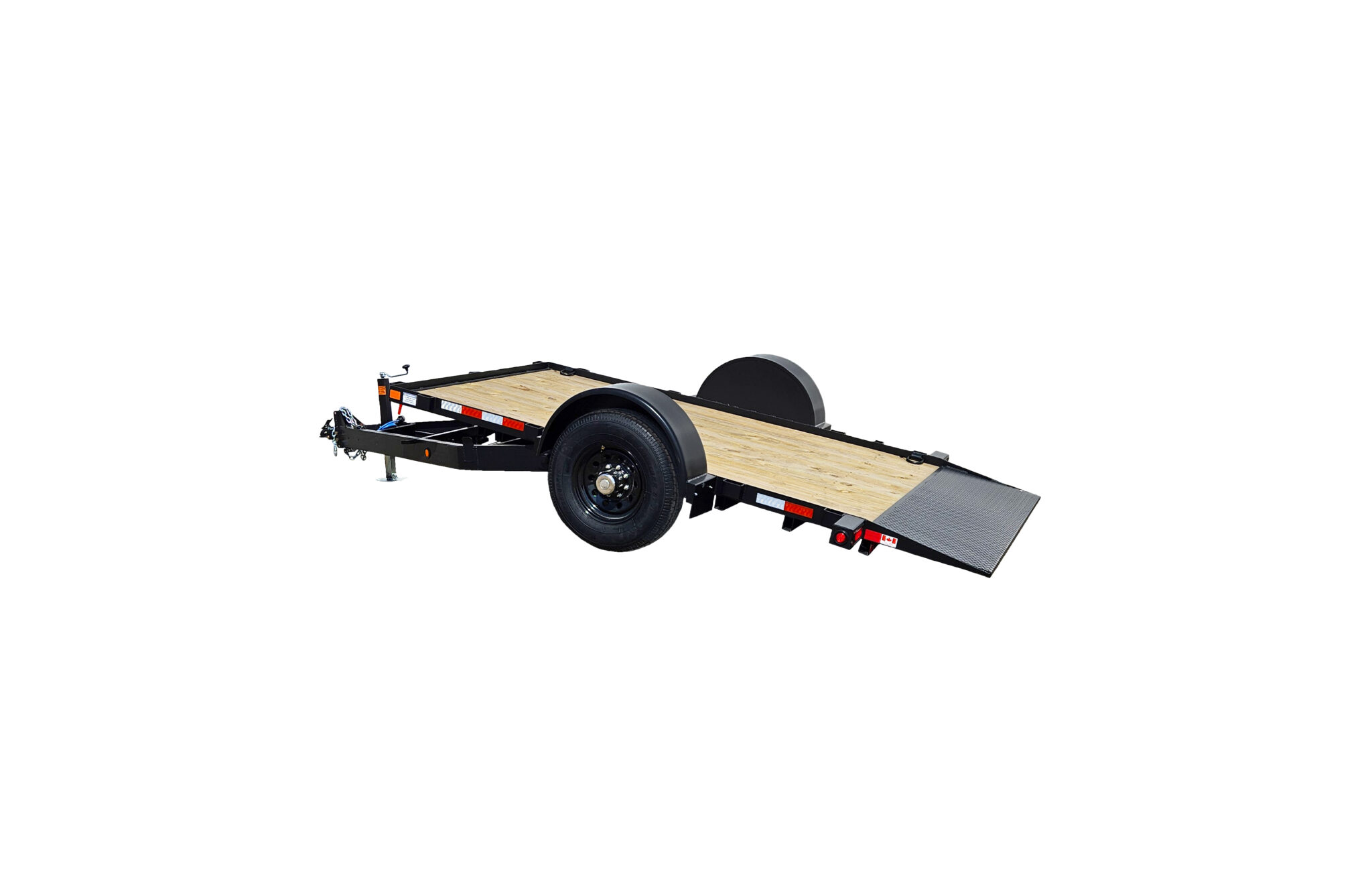

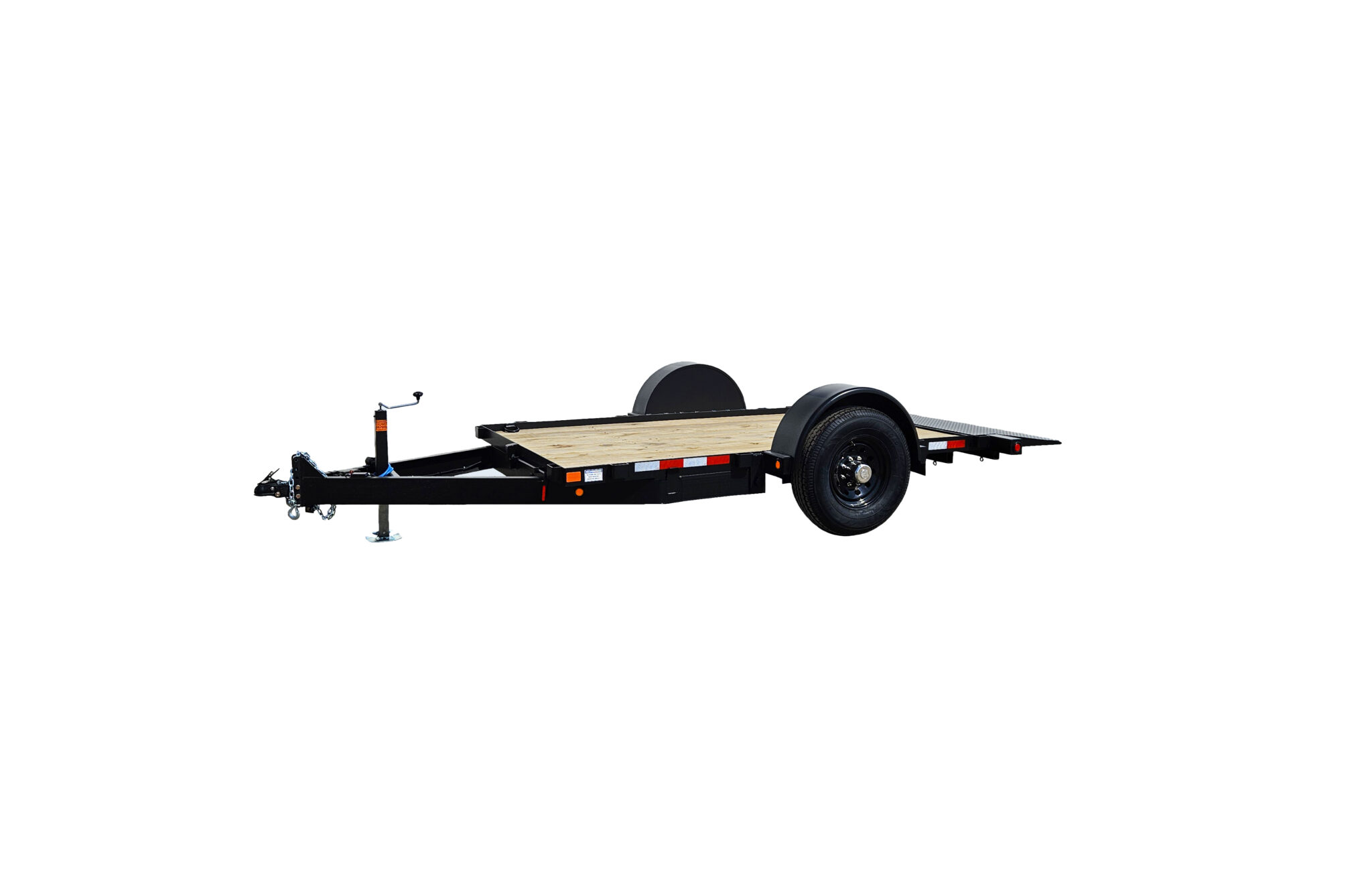

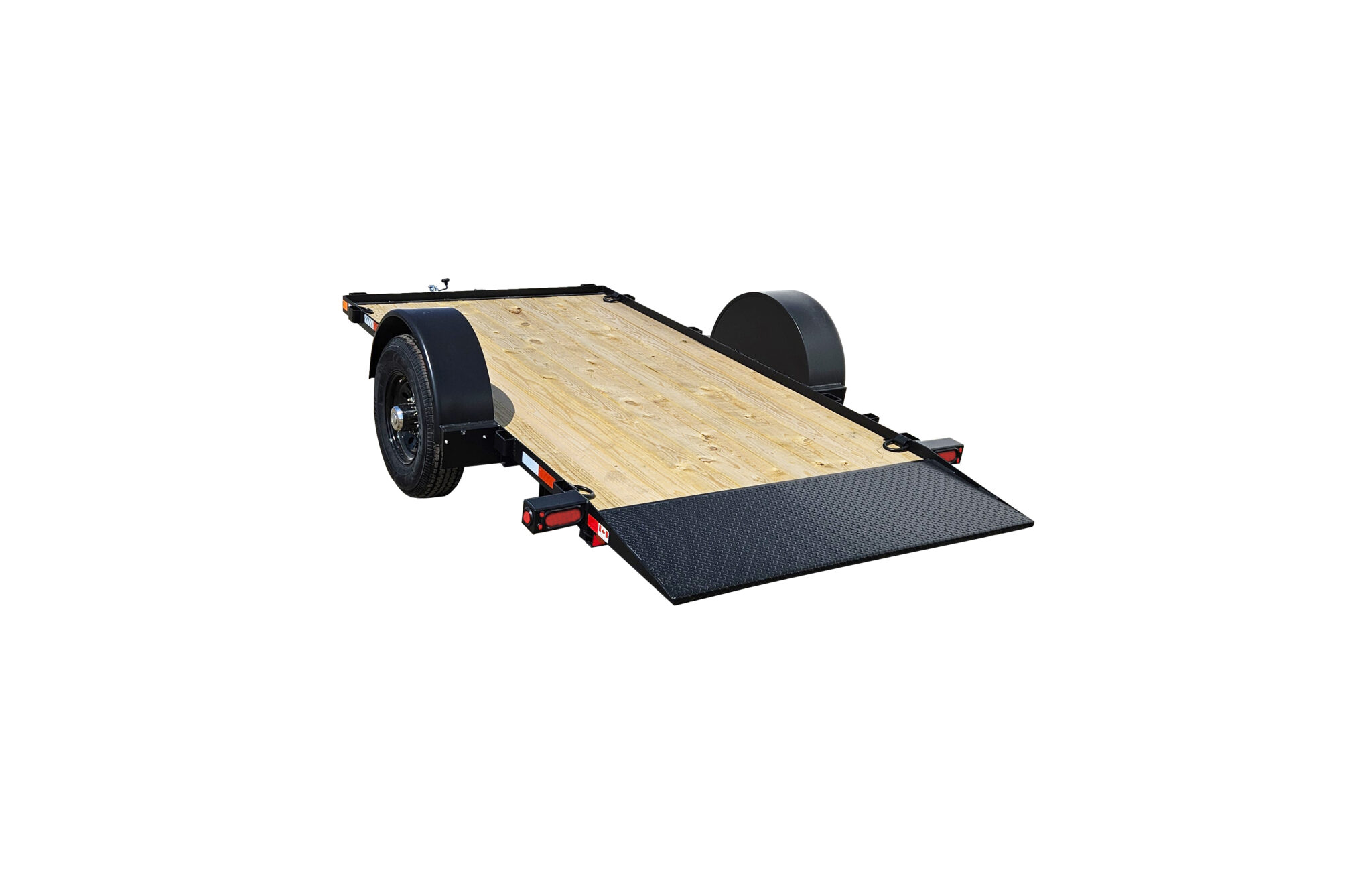

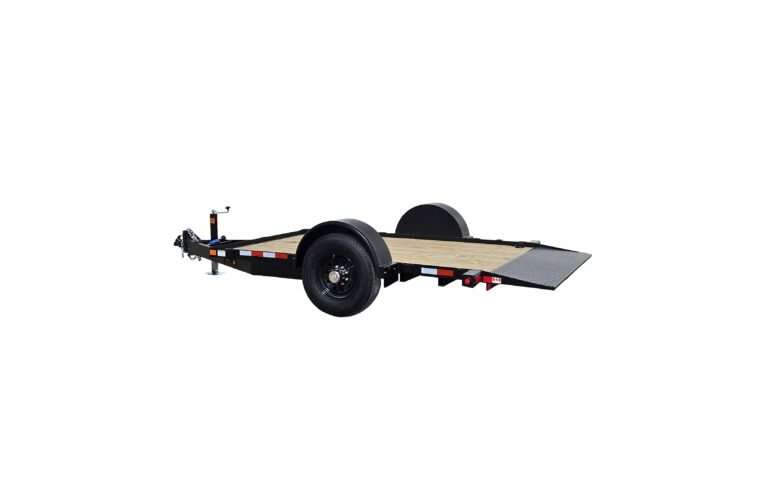

Single Axle Gravity Tilt TL.5K
Brand: Canada Trailers
Component
Details
GVWR
5,200 lbs
Axles
(1) 6,000 lbs Axles w/ Easy Lube Spindles
Suspension
Torsion Suspension
Tires
ST225/75R15 LRE Radial
Brakes
Electric
Coupler
Adjustable 2-5/16" Coupler or 3" Lunette Eye
Jack
7,000 lbs Drop Leg Jack
Deck Height
20"
Floor
Pressure Treated Wood
Tongue Length
50"
Tie Downs
Stake Pockets, (4) D-Rings
Spare Tire Mount
Passenger's Side, Removable
Lights
Sealed Beam, L.E.D.
Electrical
Sealed Harness System
Plug
7-Way RV Plug
Finish
Powder Coat + Scorpion Stone Guard
Number
Details
TL612-5K
Size – 72" x 144"; Weight – 1,346 lbs; Payload – 3,854 lbs
TL614-5K
Size – 72" x 168"; Weight – 1,575 lbs; Payload – 3,625 lbs
TL712-5K
Size – 80" x 144"; Weight – 1,392 lbs; Payload – 3,808 lbs
